SIPERM® R

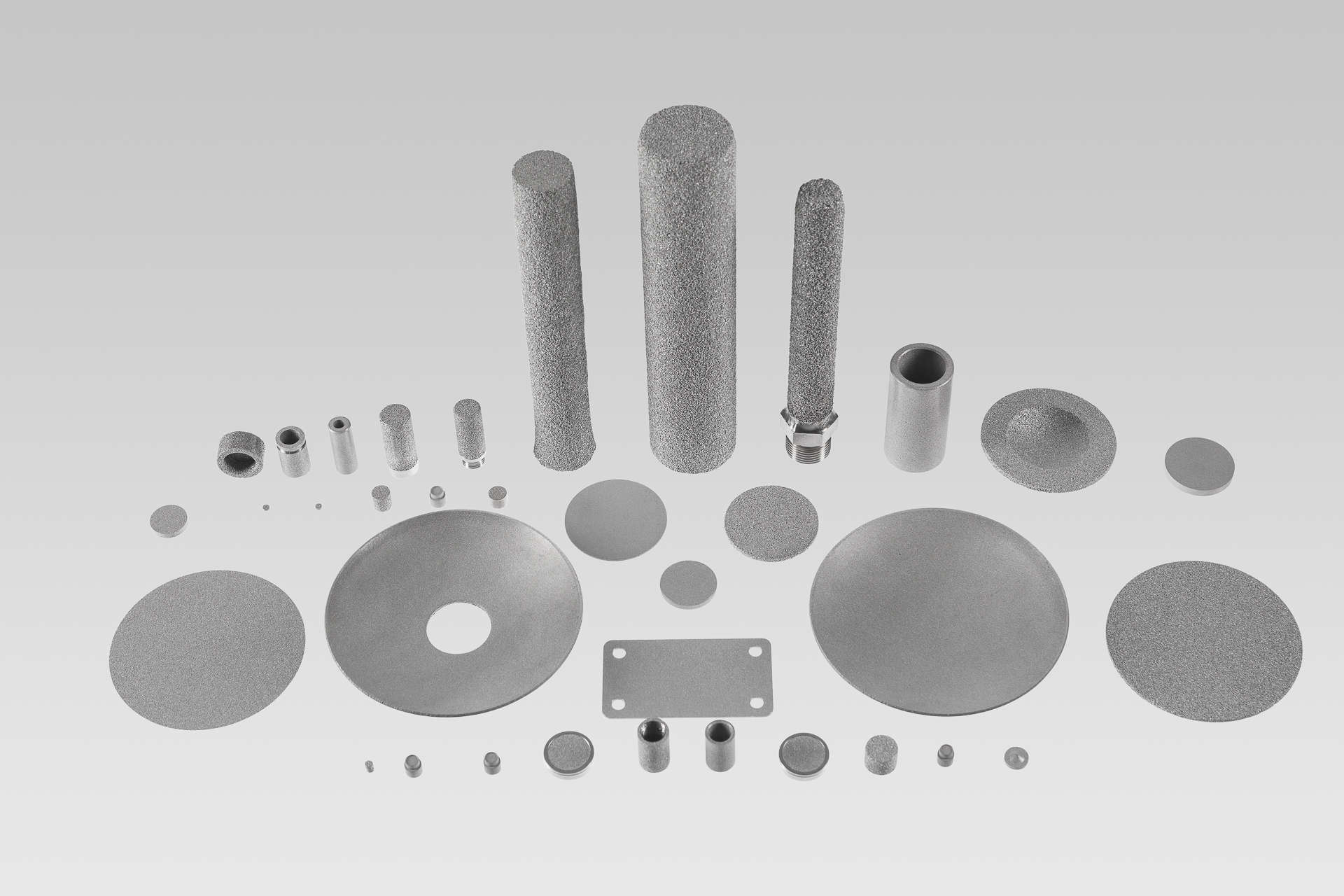

Product overview

dash

Stainless steel AISI 316L / 1.4404

Temperature resistance
500°C oxidizing atmosphere
650°C reducing atmosphere

Please find additional information and technical data in the PDFs above

Plates

Size: 280 x 220 mm and 250 x 250 mm, seamless
Thickness: 2 - 10 mm
other sizes (welded constructions and cuts) on request

Tubes

seamless and as weldment - dimensions upon request
max. diameter for seamless tubes: 100 mm
max. length for seamless tubes: 1000 mm

Discs and shaped parts

For the production of discs and shaped parts of different sizes, we have a comprehensive tool park at our disposal. Upon request we will be pleased to inform you on available dimensions and special shapes.

Fluidization units

Aeration spot: Ø80 mm, Ø100 mm, Ø105 mm
Aeration pads: 250 x 125 mm, 500 x 125 mm, 1000 x 125 mm and according to customer specification
Fluidization bottoms according to customer specification

Filter candles

seamless and as weldment - dimensions upon request
max. diameter for seamless tubes: 100 mm
max. length for seamless tubes: 1000 mm
